How do I convert my CO2 magazine into HPA!

Some of pic, when last time I Convert CO2 Magazine and 12gr CO2 Cartridge into HPA (direct filling with hill pump).

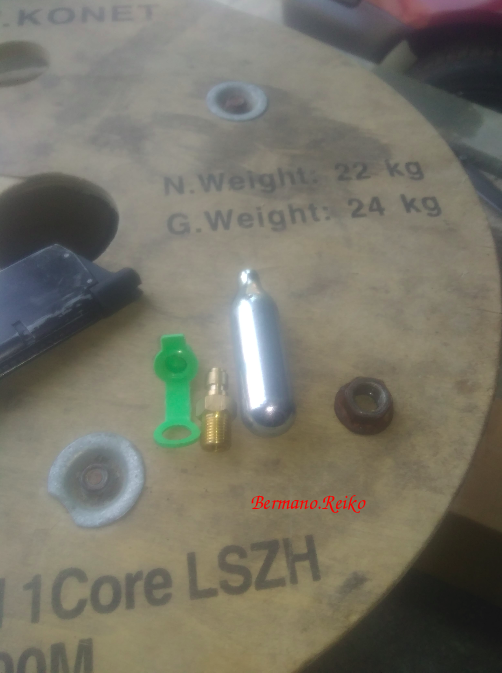

Tools and preparation:

1. CO2 Magazine (KP07 CO2 magazine as sample)

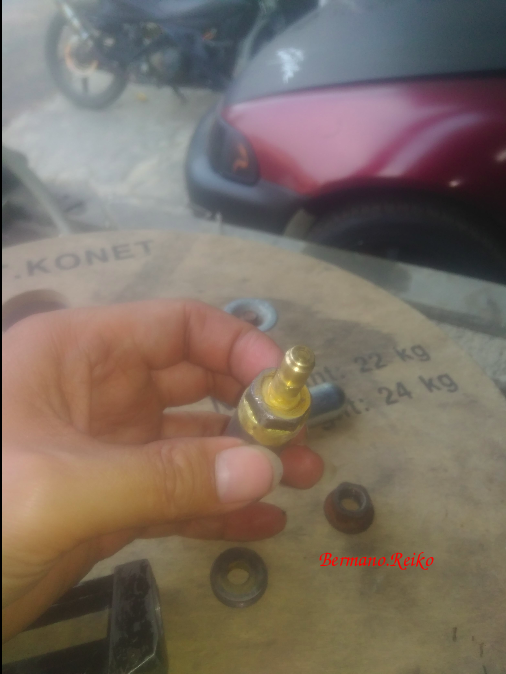

2. Mini coupler thread M10x1 (threaded outside)
3. Empty 12gr CO2 cartridge

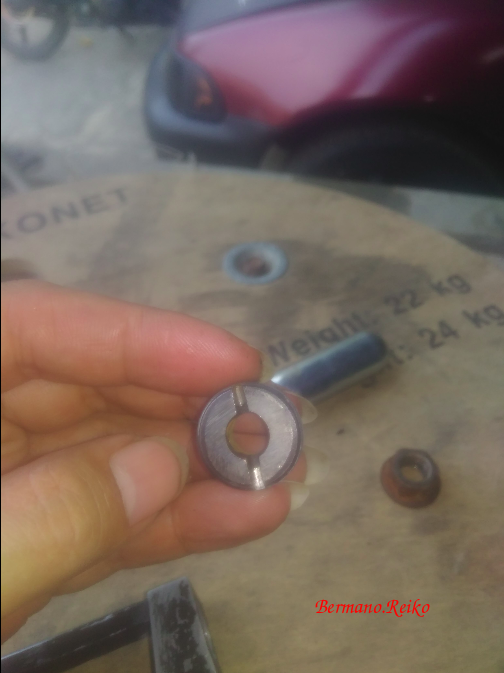

4. Nuts for M10x1


Selection_140

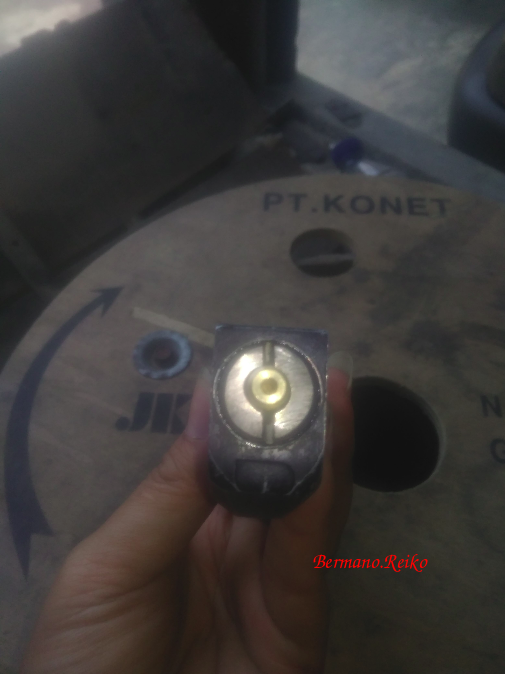

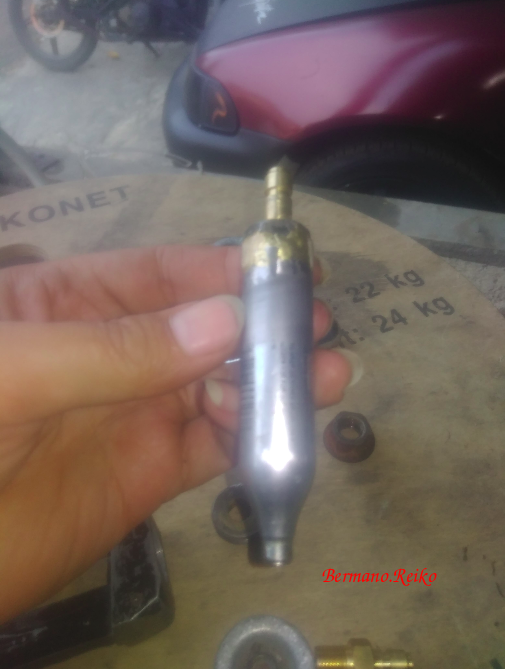

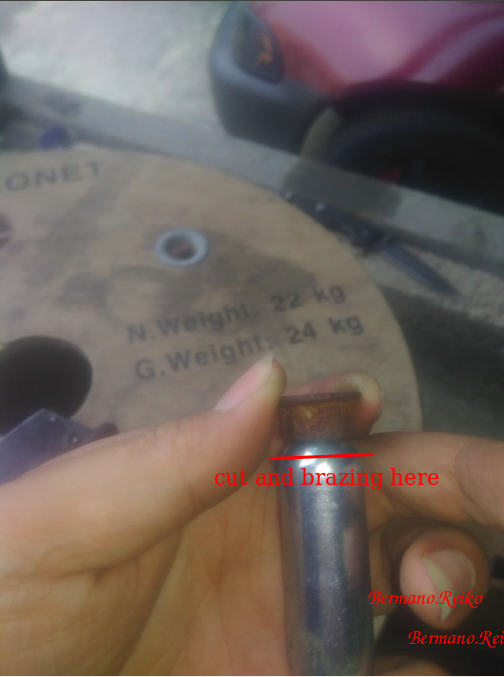

Please take a look the following pic for step by step:

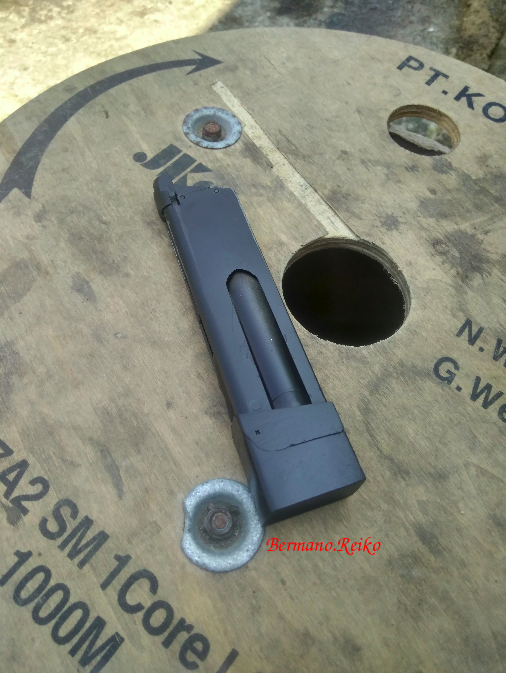

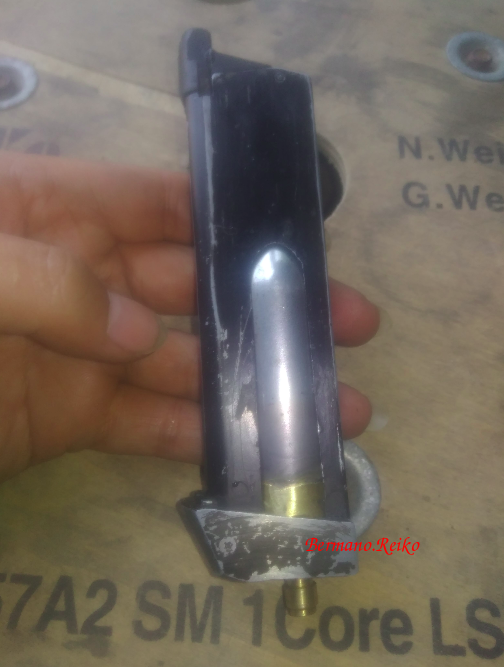

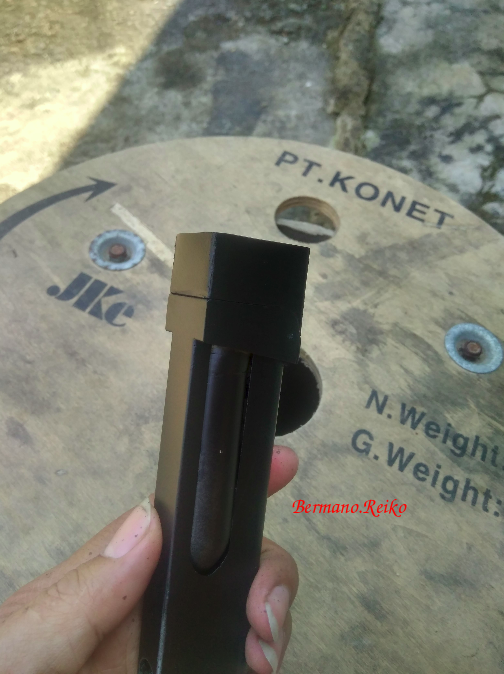

The converted magazine Can be used with 3000/4500psi HPA cylinder with regulator and transfer hose or direct filling with hill pump.
The cylinder/cartridge have been tested more than 2000psi. But for your standard gun please do not exceed 1500psi, ;D
because over pressure will hold the output valve needle too tight, standard hammer spring doesn’t strong enough to knock the pin.

You will get 8-12 powerful shoot with 1500psi (depend on output valve hole / diameter).
Convert CO2 Magazine and 12gr CO2 Cartridge into HPA highly recommended for units that have been fully upgraded, like this one.

Gimana minat gan? ;D
